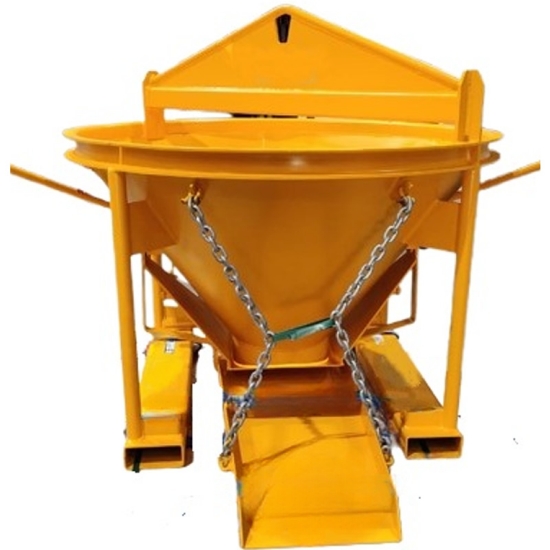

Concrete Kibble 0.5m3 Perth Special

Concrete Kibble 0.5m3 - In Stock Perth

The EW-CKM05-WA concrete kibble allows for easy handling of concrete on site by overhead crane. The kibble is fitted with forklift pockets for handling when on the ground and offers bottom or side discharge and lever operation from eith side of concrete kibble.

Features:

• 0.5m3 (half cubic metre) capacity
• Full Factory 12 month Warranty
• Compliance plate for use in Australia
• Supplied with comprehensive instruction manual
• Painted Safety Yellow
• Designed in accordance with AS 1418.1-2002 & AS 2550.1-2011.

Products specifications

• SWL (kg) : 1500
• Capacity : 0.5 cu. m
• Unit Weight (Kg) : 260
• Gate Throat : 380mm
• Gate Opening : 50 Degrees
• Chute Angle : 40 Degrees
• Bucket Diameter " 1050mm
• Pocket Size (mm) : 165 x 65
• Pocket Centres (mm) : 800

Limited Stock at this price

1m3 concrete kibble and larger rollover style concrete kibbles also available in 1.5m3, 2.0m3 and 3.0m3
