Forklift Tow Jib Attachment Perth

Forklift Tow Jib Attachment - In Stock Perth

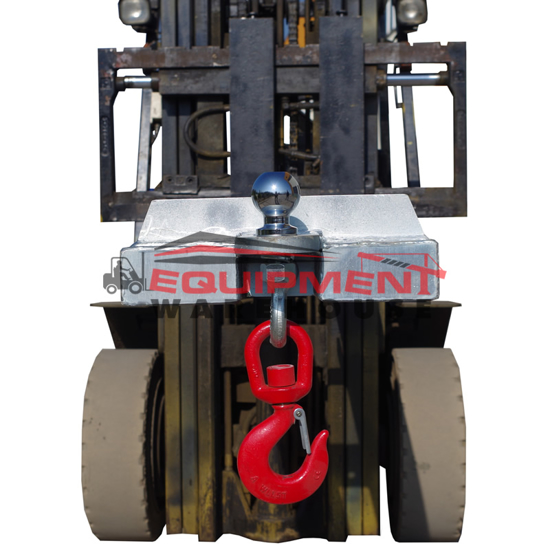

The type EW-FJ-TOWP Forklift Tow Jib Attachment has been designed  as a simple Slip-on Jib attachment with 2 hook positions  585mm apart and a 50mm tow ball fitted at the front of the jib. Both hook positions have a WLL of 2000kg – refer diagram below. When using the tow bar, the tow weight
is not to exceed 500kg and the minimum capacity of the forklift is to be 2 tonne.

The Unit is supplied with 2 Fork Arm Retaining Toggle Pins to prevent the Jib from moving off the Fork Arm.
The Standard Finish on the Type EW-FJ-TOWP Forklift Tow Jib Attachment is Zinc Plated.

In Stock Perth High Wycombe warehouse. Pickup or Perth Metro and WA regional delivery available

Products specifications

NOTE: Only suitable for 1070mm forklift tynes

Note that the towing of trailers by a forklift fitted with a tow jib can impose overturning forces on the forklift and additional force on the mast and braking system. The load being towed must be no greater than 25% of the mass of the forklift. Towing should be carried out in a slow, smooth and controlled manner and on level ground. Sharp turning must be avoided at all time to prevent jack-knifing of the trailer.
