Forklift Wheelie Bin Tipper x 1 bin - Perth

Suitable for emptying 240 litre plastic wheelie bins. The bin is wheeled into the Tipper and secured with safety chains.
Part No: EW-WBT-1Z-P
*
$1,020.00 excl GST

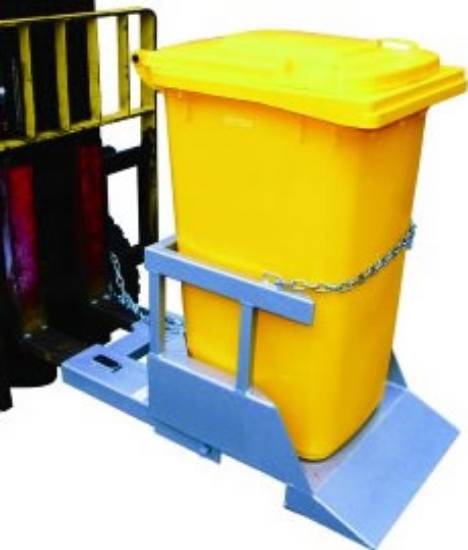

Forklift Wheelie Bin Tipper x 1 bin



Suitable for emptying 1 x single 240 litre plastic wheelie bin. The bin is wheeled into the forklift mounted tipper and secured with safety chains. The 180 degree tipping operation is simple and safe with the operator never having to leave the seat during the tipping cycle.

The finish on the Wheelie Bin Tipper is enamel painted.

Description:

  • Allows 180 degree rotation of a standard 240 litre plastic wheelie bin
  • Ramp fitted for wheeling bin into position
  • Safety chain and backrest used to secure bin in cradle
  • Simple tipping action operated from forklift driver’s seat
  • Slip-on attachment allows quick connection to a forklift
  • Design can vary for use with a 120 litre plastic bin
  • Suitable for manufacturing and general industry applications
  • Zinc finish

Specifications:

  • Working Load Limit (WLL) : 500kg
  • Load Centre : 1200mm
  • Tipping Angle : 180°
  • Unit Weight : 100kg
  • Fork Pocket Size : 185 x 85mm
  • Fork Pocket Centres : 340mm
