Freestanding Bulk Bag Filling Frame - Perth

Freestanding Bulk Bag Filling Frame - In Stock Perth

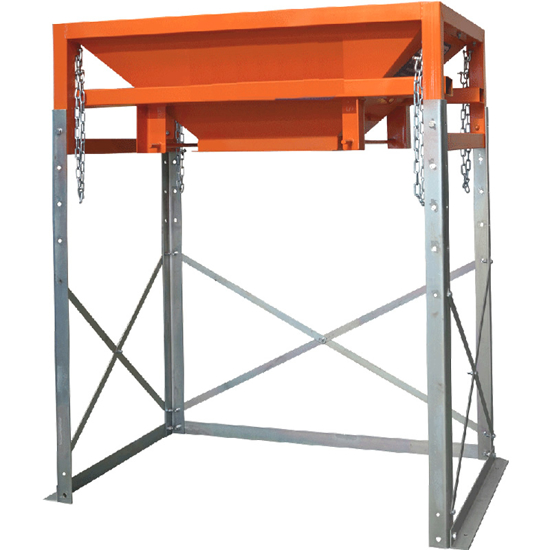

The EW-BFU250-WA Bulk Bag Filling Frame saves hours of labour and reduces risk of injury. This frame is designed to safely hook open a bulk bag and fill with free-flowing bulk products such as sand and gravel, removing the need for the operator to hold the bag open or manually fill themselves.

Features:
4 safety swivel hooks hold bulk bag in position whilst filling
Adjustable bag restraining chains position bulk bag at correct height
3 adjustable height settings to suit your operational requirements
Fork pockets fitted for easy transport
Optional clamshell gate (BFU250CS) for control over flow rate
Optional spill guard (BFU250SG) prevents overspill
Upper hopper assembly enamel paint finish. Support frame zinc finich
Supplied standard as ‘flatpack’ (for on-site assembly). Optional accessories do not come standard with base model BFU250 listed. Please order separately.

Specifications:
Working Load Limit (WLL) : 1000kg
Overall Dimensions : 1800 x 1150mm
Hopper Opening : 554 x 400mm
Unit Weight* : 270kg
Fork Pocket Size : 140 x 65mm
Fork Pocket Centres : 850mm

* Unit weight does not include optional clamshell gate or spill guard

In Stock Perth
